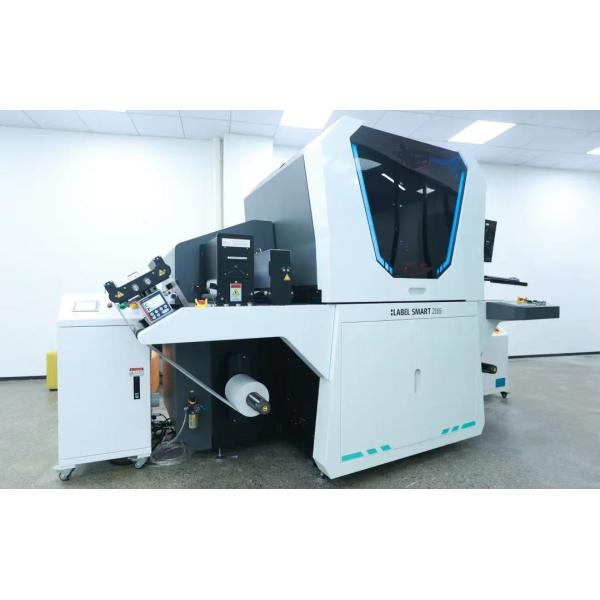

Roll To Roll One-Side UV Ink Digital Label Printer
º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º
Specifictions
Model
Label Smart 108S; Label Smart 216S; Label Smart 330S
Techical Specification
Printing Technology
Piezoelectric Inkjet
Print Method
Roll to Roll, One-side
Color Configuration
CMYK / W + CMYK / W + W + CMYK
Number Of Channels
6
Maximum Speed
50 m/min(600dpix600dpi); 25 m/min(600dpix1200dpi)
Resolution
600x600 dpi/ 600x1200 dpi
Ink Type
UV Ink
Curing Method
UV LED
Media Media Width
80-330 mm; 110-330 mm
Maximum Print Width
108 mm; 216 mm; 324 mm
Media Thickness
50-400 μm
Media Type
PET, BOPP, PE, BOPA PP, Coated paper, Synthetic paper, Art paper, etc
Maximum Media Roll Diameter
600 mm
Power
Power Supply
380 V
Power
15 kw; 30 kw
Compressed Air
> 6.5 MPa
Air Consumption
> 10 L/min
Environment
Operation Temperature
20-27 °C
Operation Humidity
40-70% RH
System Components
Skew Adjustment System
√
Dust Removal
√
Water Cooling System
√
| Model | Label Smart 108S | Label Smart 216S | Label Smart 330S |
| Techical Specification | |
| Printing Technology | Piezoelectric Inkjet |
| Print Method | Roll to Roll, One - Side |
| Color Configuration | CMYK / W + CMYK / W + W + CMYK |
| Number Of Channels | 6 |
| Maximum Speed | 50 m/min(600dpix600dpi); 25 m/min(600dpix1200dpi) |
| Resolution | 600x600 dpi/ 600x1200 dpi |
| Ink Type | UV Ink |
| Curing Method | UV LED |
| Media | |
| Media Width | 80-330 mm | 80-330 mm | 110-330 mm |
| Maximum Print Width | 108 mm | 216 mm | 324 mm |
| Media Thickness | 50-400 μm |
| Media Type | PET, BOPP, PE, BOPA PP, Coated paper, Synthetic paper, Art paper, etc |
| Maximum Media Roll Diameter | 600 mm |
| Power | |
| Power Supply | 380 V |
| Power | 15 kw | 30 kw |
| Compressed Air | > 6.5 MPa |
| Air Consumption | > 10 L/min |
| Environment | |
| Operation Temperature | 20-27 °C |
| Operation Humidity | 40-70% RH |
| System Components | |
| Skew Adjustment System | √ |
| Dust Removal | √ |
| Water Cooling System | √ |
º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º
Features
Stable and high-speed printing unit
Imported high-precision industrial print head has higher fire ignition frequency and service life, resolution up to 600 X 1200 dpi, guaranteed excellent print quality.The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration, and makes the printed matter more aesthetic.
AGFA APOGEE workflow software system
The fully integrated AGFA Apogee prepress workflow system ensures the highest level of reliability while making equipment operation easier, good for production.
Automatic winding and unwinding system
Effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.High linkage winding system, fully automated, to maximize automated production.
Unique print head control system
Each print head has its own board to control, makes printhead printing more efficiency and easier to maintain.
Unique multiple curing technology
LED cold light curing unit, energy saving and high efficiency. Each color group is equipped with a curing module, so the ink droplets can be quickly and accurately attached to different media without spreading. After the four-color printing is completed, the ink is completely cured by the main curing system, and the colors are lifelike.
º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º
Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º
Certificates
º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º ¹ º
FAQ
Q1: Why should I choose UV ink ?
A: Benefit from the excellent ink formula, our UV eco-friendly ink can still achieve excellent stability while ensuring environmental protection. Broad color gamut UV ink, vivid colors, with color management system, can accurately restore the Pantone database colors.
Q2: Which printing consumables can be applied ?
A: Feeding unit for inkjet digital printing system, with high flexibility, suitable for all materials for 80-330mm wide label printing: film (PET, BOPP, PE, BOPA), label stock (PE label), pre-pressed materials (PET, ALU, PE) , paper, among others.
Q3: Any other good features ?
A: Our LABEL SMART series printer have stable and high-speed printing unit, automatic winding and unwinding system, unique print head control system and multiple curing technology. These features make LABEL SMART easier to operate and makes the printed matter more aesthetic. Hope you like it.
Video ► https://youtu.be/bYOWKz6ngkU?si=4f4mVCGOeATEYIDt
