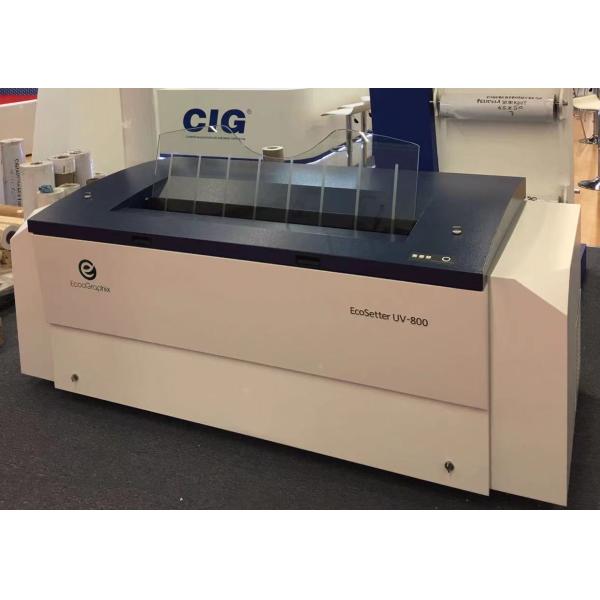

8-Page Formats 32-Channel Thermal Platesetter Plate Making Machine CTP
EcooGraphix Thermal CTP(Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing.
It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.
Specification:
| ECOO T-800 Series Thermal CTP Specifications |
| Model | T-800F | T-800S | T-800E |
| Exposing Method | External Drum |
| Imaging System | 64-channel | 48-channel | 32-channel |
| Discrete 830nm laser diode |
| Throughput | 28plates/hour | 22plates/hour | 16plates/hour |
| 1030mm x 800mm, 2400dpi |
| Plate Sizes | Max.1163mm x 940mm |
| Min.400mm x 300mm |
| Exposing Size | Max.1130mm x 884mm |
| Min.260mm x 284mm |
| Media Type | Positive 830nm thermal CTP plate |
| Plate Thickness | 0.15mm to 0.30mm |
| Resolution | 2400dpi |
| Repeatability | ±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%) |
| Interface | USB 2.0 |
| Plate Loading | Semi automatic |
| Net Weight | 900kg |
| Machine Size | 2320x1080x960 |
| (WxLxH)mm |
| Power Supply | Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW |
| Operation Environment | Recommended: 21-25ºC, Max.15-30ºC, Humidity: 40-70% |
Features:
Reliable, high-quality platemaking at an affordable cost
Available in 8-page formats, low energy usage, offering multiple automation options to reduce labor, for even more costsavings.
Achieve print quality that stands out from the competition-without breaking the bank.
With economical automation options and imaging speeds of 16-28 pph, the EcooGraphix Platesetter can help businesses of all types and budgets improve productivity and efficiency.
The 8-page (T800) models come standard with semi-automated plate loading/unloading-or upgrade for more advanced features, including inline punch.
Choose the high-capacity, fully automated Multi-Cassette Unit (MCU) for long-running platemaking with minimal manual intervention.
Producing And Packaging:
FAQ:
Q1: What are your main products ?
A: Our main products are the Prepress CTP System ( 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor ), and Post Press Packing equipments ( Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching machine, Book Binding machine and so on ) and the Printing consumables ( Offset Printing Plates, Inks, Printing blankets, Plate dot densimeter ).
Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our Technician Support service and product performance. You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
Q3: What is your warranty for the CTPs ?
A: Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.
Q4: What is the Lead Time ?
A: Usually 10-30 days, and we will try our best to meet your demands.
Q5: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q6: What about the Installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
